Brand:Bolt Energy Batteries

Bolt Energy 72-Volt / 105-AH Professional kit “Power”

0 Reviews
SKU:
BE10572P Pro-K-Club Car P
$3,495.00
$3,495.00 $3,995.00

Save Big Today – Prices Won’t Last!

Freee shipping above orders of $100
100% satisfaction garuntee
Authorized Dealer
have a question?
In Stock
$3,495.00
$3,495.00 $3,995.00
Variants
Quantity

$3,495.00
$3,495.00 $3,995.00
Shipping calculated at checkout.
Guaranteed Safe Checkout
American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Location:

10899 Kinghurst Dr, Suite 245, Houston, TX 77099

Lets Talk You can reach out to us at:

1-888-409-5430
golf cart parts bi box seam icon

Original Products

Only parts from trusted brands

Golf Cart Parts Box Auto Icon

Fast & Free Delivery

Free Shipping over $100

Golf Cart Parts bi box icon

30 Days Returns

30 days open purchase

Golf Cart Parts bi box support

Dedicated Support

We support both Sat & Sun

Description

All our golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

  • 72V-105AH BATTERY
  • Bluetooth receiver
  • Smart SOC “state of charge meter”
  • Owners manual “SIMPLE installation instructions”
  • 6- 3/8 battery ring terminal connectors
  • 10-10″ tie straps
  • Bolt Energy USA sticker’s
  • Waterproof high speed charger

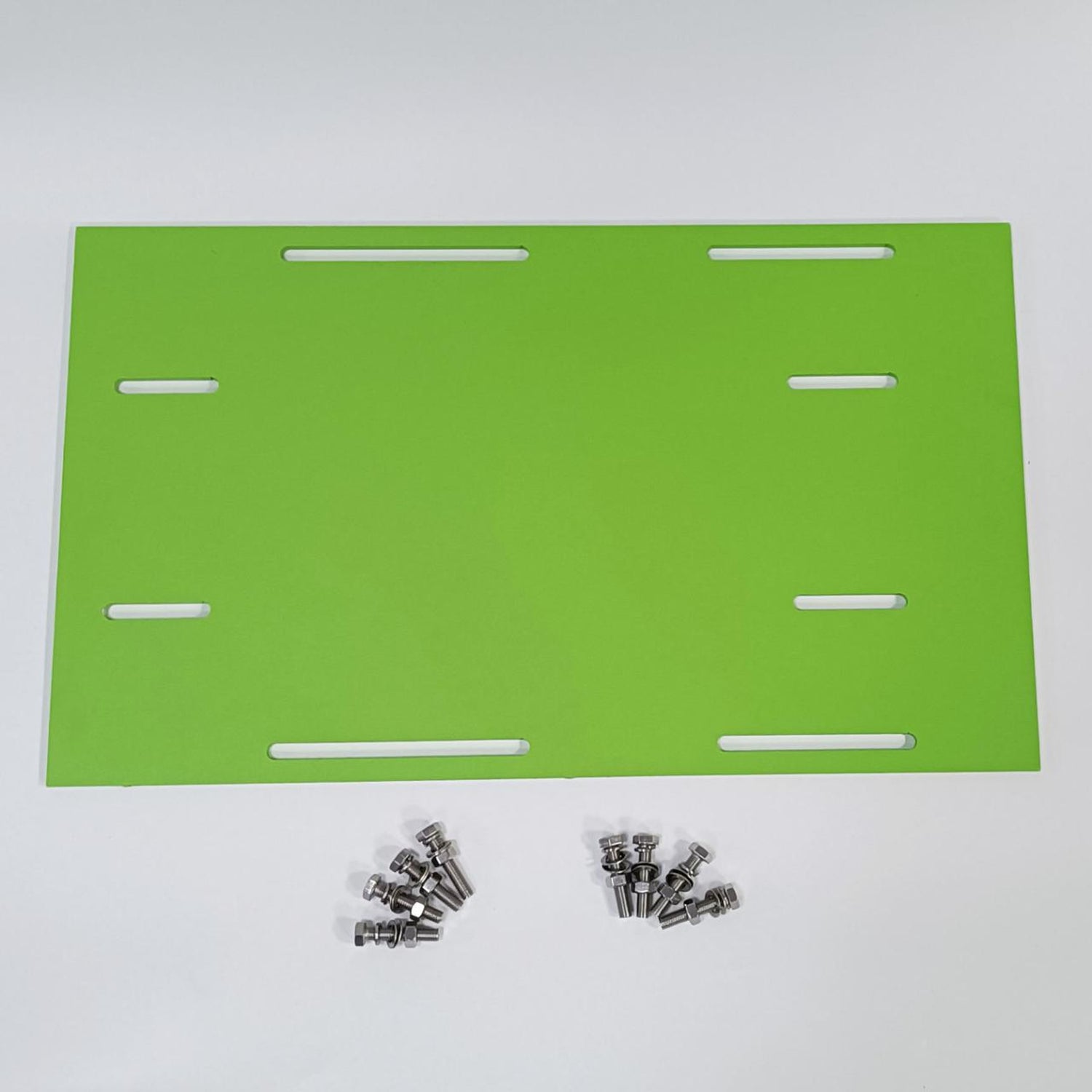

  • Mounting brackets, Nuts & bolts
  • AC Hardwire PORT
  • DECO Cover plate AC hardwire universal or club car
  • 30 amp reducer
  • 2-40″ 2AWG premium installation cables
  • 48V- 400A solenoid
  • Lead battery removal strap
  • 15ft-12 AWG Green lighted extension cord

MECHANICAL SPECIFICATIONS

  • Dimensions (L x W x H): 20.08″ x 10.75″ x 10.39″
  • Weight: 137.26lbs (62.26kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P23S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Stardard
  • Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 57.5V
  • Recommended Low Voltage Disconnect: 69.0V
  • BMS Reconnect Voltage: 60.0V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

  • Nominal Voltage: 73.6V
  • Working Voltage: 62 – 83.95V
  • Recommended Voltage: 69V – 81.93V
  • Nominal Capacity: 105Ah
  • Energy: 7,728Wh
  • Capacity @ 25A: 420 min
  • Efficiency: 0.99
  • Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 84V
  • Reconnect Voltage: <84V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

VIEW DATA SHEET PDF

INSTALLATION VIDEO
