Add Solar Power to Your RV, Boat or Trailer
Dakota Lithium's #1 best selling solar panel kit for larger RVs, Vans, Campers and Trailers. This 200 watt kit provides enough power to charge up to 200Ah of Dakota Lithium batteries. Lithium compatible solar charge controller, integration kit, and Bluetooth battery monitor included. Add additional panels for larger off-the-grid power systems.

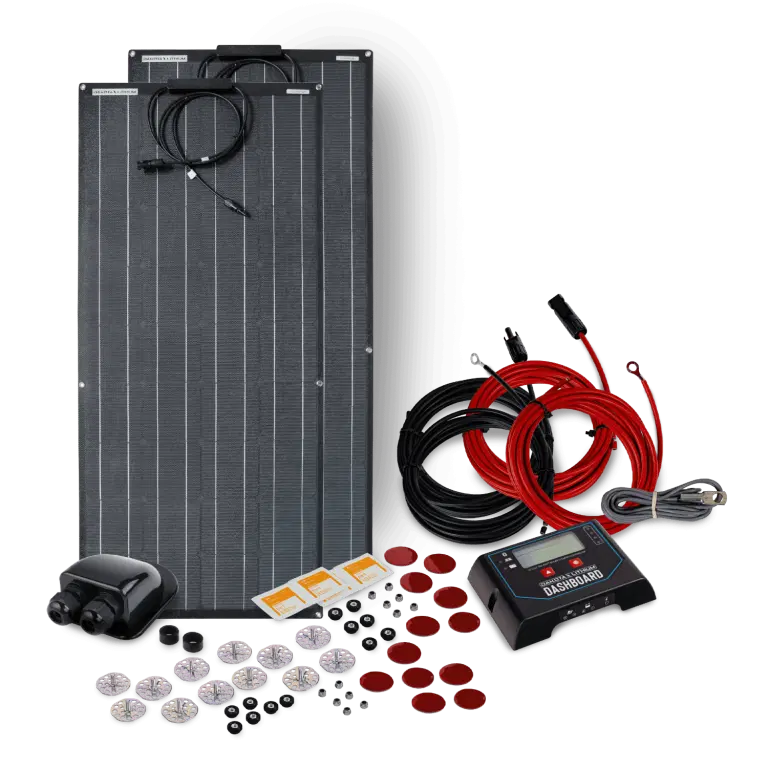

Dakota Lithium's most popular solar kit but with 100% more power! For unlimited freedom, and a quieter, more peaceful outdoor experience, replace your generator with this 200-watt solar kit. This kit offers enough power to charge most single 12-volt battery banks (combine 200 watts of solar with 200Ah of Dakota Lithium batteries). Power your RV, boat or trailer with 200-watts, or expand it up to 300-watts for larger rigs and equipment by adding additional panels. Includes everything you need to connect your solar panels to your battery including the mounting hardware, lithium compatible solar change controller, and wiring kit. Plus, this kit includes a Bluetooth battery monitor integrated into the solar charge controller, so you can see how much power is left in your battery at any one time using the DL Dashboard mobile app. Designed for decades of rugged use, this flexible, marine grade solar panel is waterproof, flexible for curved roofs and boat decks, and is backed up by a 25 year output warranty. 200-Watt Kit Includes: 2 x 100 watt flexible, marine grade solar panels with a 25 year output warranty. 2 x waterproof quick connect solar plugs (easily connects your wiring kit to your solar panels) 1 X Dakota Lithium Solar Integration Kit, which includes a 15-Amp lithium compatible solar charge controller and Bluetooth battery monitor. Download the DL Dashboard app to see how much energy you have stored in the battery and see how much power your solar panels have generated. 1 X Pre-assembled wiring harness for connecting solar panels to your batteries. 1 X 2-port roof cap (ready for future expansions!) 12 X Stainless steel mounting hardware 2 X Industrial welding tape as an alternative to mounting hardware. Add on an additional 100 watt solar panel and roof port for systems with more than 12V 200 Ah of Dakota Lithium battery capacity. See our solar panel size chart for what and battery combination is appropriate to your needs.
Power
200 Watts power output (2 x 100 watt solar panels)
Generates 11.2 amps
11.2 amps peak power generation. Latitude and season will impact solar panel output. If you spend a lot of time winter camping in northern latitudes you may want to think about adding an additional panel
Solar Charge Controller & Circuit Breakers Included
Lithium compatible smart solar charge controller provides real time updates of volts, amps, and amp hours via the DL Dashboard mobile app. Dual, self-resetting circuit breakers provide peace of mind by protecting your system from overcharging.
Max Power Voltage
18 Volts (V). Can be connected directly to the battery for simple and smaller systems. A solar charge controller is highly recommended since it lowers the voltage to 14.4V and greatly increases the efficiency of the system.
Simple Installation
Installation is a breeze with the pre-assembled mounting hardware and 10 ft wiring harness. The DL Dashboard integration kit allows you to easily connect your panel to your solar charge controller, battery monitor, and battery.… just plug in and go!
Flexible and Durable
Semi-flexible, marine grade solar panel on a ruggedized waterproof backing. Optimal for rooftops and boat decks. Not designed for walking on. Foot traffic will reduce the lifespan and warranty of the panel.
How Long to Charge My Battery?
Divide the Ah (capacity) of your battery by 11 to determine how many hours to charge your battery.
Size
47.25 in (1200.15 mm) x 21.25 in (539.75 mm) x 0.1 in (3 mm) per panel
Weight
Total of 7 lbs. 5 lbs per Solar Panel, 2 lbs solar integration kit and hardware
Optimized for Dakota Lithium
Optimized for Dakota Lithium batteries. Includes lithium compatible solar charge controller.
Maximum Power Voltage
18 Volts
Bluetooth Battery Monitor Included
Includes a Bluetooth battery monitor integrated into the solar charge controller, so you can see how much power is left in your battery at any one time using the DL Dashboard mobile app
MOUNTING HARDWARE INCLUDED
Dakota Lithium's innovative mounting hardware lets you to mount the panels wherever you need them, and the stainless steel mounting hardware ensure your panels won’t budge in route—no matter how far off-road you go. Additional double sided industrial welding tape is included as an alternative to using the hardware, and may be preferable on curved surfaces like boat decks or airstream trailers.
2-Port Roof Cap Included
Waterproof roof cap allows for easy installation on Vans, boats, RVs, trucks and trailers. 2 ports supports up to 200 watts of solar panels. Add additional ports for additional panels.
Cable / Wiring Included
Solar panel includes 3 ft wire harness with waterproof MC4 connectors. Integration kit includes 10 ft wiring harness.
25 Year Warranty
25 year power output warranty for Dakota Lithium solar panels, meaning the panels are guaranteed to generate power for 25 years.
