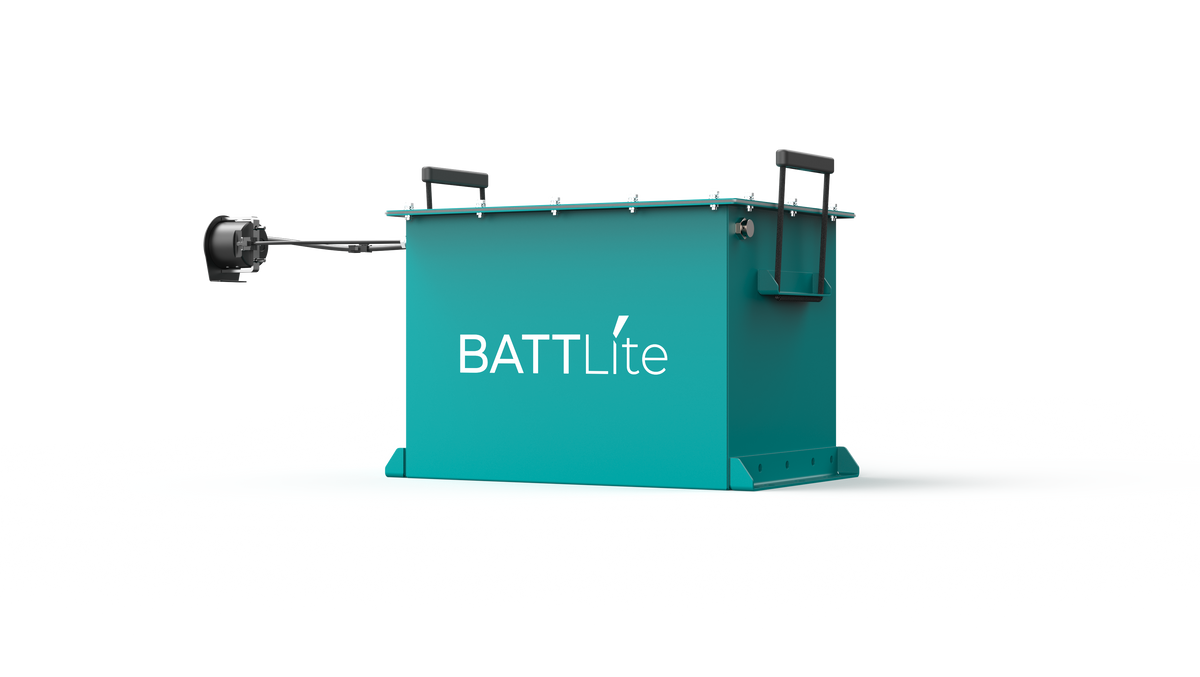

BATTLite by Roypow - BAT5000 51.2V 100Ah Bundle - Yamaha

40V@≤5℃2.5±0.05V@≤5℃Constant Voltage: 3.65VDescription:
8 years warranty (5 years full replacement plus 3 years pro-rated)IP67 Ingress RatingWith BluetoothSupport remote OTA upgrades via the Bluetooth-enabled APP.With extra external button switchUltra-Compact Design: Cell-to-Pack (CTP) compact design to fit more cart.Pass Automotive-grade UL2271 vibration and thermal runaway test.Same workshop and quality control as RoyPow premium brand.
UL2271 certified product

Battery System Information




Parameter


Unit


Specification


Cell Specification






Configuration


-


16S1P


-




Rated capacity


Ah


100Ah


100Ah




Rated voltage


V


51.2


3.2V




Maximum voltage


V


58.4


3.65V




Minimum voltage


V


44.8V@>5℃36.8V@>100A (Discharge)


2.8±0.05V@>5℃2.3V@>100A (Discharge)




Standard capacity


kWh


5.12 @ 0.5C, 25℃


-




Weight


Kg


50±3


-




Maximum discharge current


A


300 (@30S, 25℃, SOC50%, BOL)


-




Maximum charging current


A


100 (@5S, 25℃, SOC 50% BOL)


-




Standard continuous discharge current


A


100 (@25℃, SOC50%, BOL)


-




Continuous charging current


A


30 (@25℃, SOC 50% BOL)


-




Operating Temperature




Parameter


Unit


Specification






Charging working temperature


℃


0~55




Discharge working temperature


℃


-20~55




Storage temperature (short-term, within 1 month)


℃


-20~45




Storage temperature (long-term, within one year)


℃


0~35




Additional Specifications




Parameter


Unit


Specification






Standard Charge (@ 25℃)


-


Constant Current: ≤0.5CEnd Condition (Cut off): ≥0.02C




SOC status before shipment


-


SOC 50%±3%




Self-discharge rate


%


Max 3 (@SOC 100%, 25℃, Loss/Month, @BOL)




Safe reliability


-


GBT Certificate cell




Insulativity


MΩ


Min 20MΩ/1000VDC @25℃±5℃, RH50%




Cooling mode


-


Natural (Passive) Convection




Working range of SOC


%


0~100%




Ingress protection


-


IP67




Cycle life


-


>3500 @25℃, 0.5C charge, 1C discharge, DOD 70%(SOC30~100%)




Remaining capacity at end of life


-


EOL 70% (According to warranty period, driving pattern, temp. profile, etc)
