Epoch LiFePO4 Golf Cart Battery Kit 48V 120Ah GC2 (4-Pack)

This Golf Cart Battery is designed for 48v Golf Carts. It is an exact replacement for the Trojan T-105 battery, and it is IP67 Waterproof with an ability to stack up to 10 batteries in parallel (300Ah). Built tough with a large BMS and heat sink for a long lasting battery.
This battery is engineered in the United States and includes a built in Smart Battery Management System (BMS) that protects the battery from Over Voltage, Under Voltage, Over Current, Short Circuit, Over Temperature and Under Temperature. It also includes 2 COM ports, and are connected in a parallel system. Connect positive to positive. Connect negative to negative.

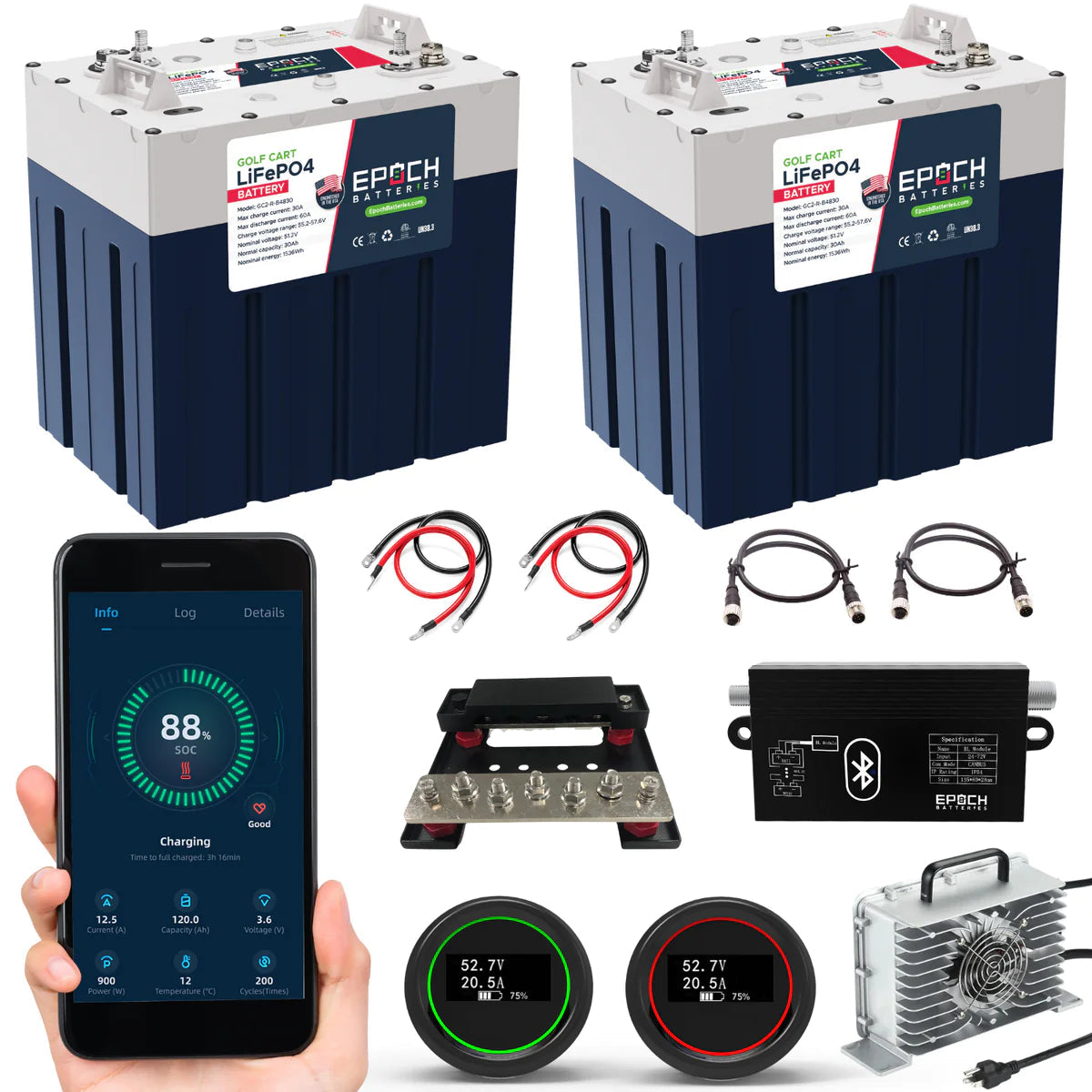

What is included:

What's the Best Kit for Me?
60ah (2x30ah)

Compatible with stock golf carts (RXV stock carts, or any other stock carts with a controller 300amp or higher, will need 90ah)
200A 10 seconds, 400A 3 seconds max discharge

Range: 20mi-25mi


90ah (3x30ah)

Compatible with stock & upgraded golf carts
Modified/Upgraded controller
Large tires with a lift kit
300A 10 seconds, 600A 3 seconds max discharge
Range:30mi-40mi

120ah (4x30ah)

Compatible with stock & upgraded golf carts
Modified/Upgraded controller
Large tires with a lift kit
6 seat carts (People Movers)
400A 10 seconds, 800A 3 seconds max discharge
Range: 40mi-50mi

150ah (5x30ah)

Compatible with stock & upgraded golf carts
Modified/Upgraded controller
Large tires with a lift kit
6 seat carts (People Movers)
500A 10 seconds, 1000A 3 seconds max discharge
Range:50mi-60mi

180ah (6x30ah)

Compatible with stock & upgraded golf carts
Modified/Upgraded controller
Large tires with a lift kit
6 seat carts (People Movers)
600A 10 seconds, 1200A 3 seconds max discharge
Range: 60mi-70mi

Features:
LiFePO4 Chemistry- 30Ah Capacity- 60A Max Continuous (100A 10S Pulse) (200A 3S Pulse)- IP67 Rated, Dust and WATERPROOF- CAN Bus Communication- Built-in Smart Battery Management System (BMS)- Over charge and over discharge protection- Over current and short circuit protection- High & low temperature disconnects- 4000+ Cycle life & Maintenance-free- 11 Year Manufacturer Warranty
DESIGNED FOR 48V GOLF CARTS

TROJAN T-105 EXACT REPLACEMENT
MODULE DESIGN, GC2 SIZE
IP67 - WATERPROOF
STACK FOR INCREASED POWER OUTPUT
CONNECT UP TO 10 IN PARALLEL (300AH)
48V GOLF CARTS





Weights & Dimensions
    Weight: 33(LBS)    Dimensions: 10.2 x 10.7 x 7.1 (inches
Specifications:

CONFIGURATION


Cell Configuration: 16S



Chemistry: LiFePO4





CURRENT


Ah Capacity: 30Ah



Max Charge Current Amps: 30A




Max Discharge Peak Current Amps: 100A (10 Seconds) - 200A (3 Seconds)




Series | Parallel: Max (10) in Parallel = 300 Amp Hours





VOLTAGE


Voltage: 51.2V Nominal



Max Charge Voltage: 57.6V




Operating Voltage Range: 40.0 - 57.6V





TEMPERATURE


Charge Temp Range: 0°C (32°F) / 55°C (131°F)



Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)




Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)





EPOCH LIFEPO4 TECHNOLOGYAt Epoch Batteries, we are excited to offer our customers top-of-the-line lithium iron phosphate (LiFePO4) batteries specifically designed for golf cart applications. Our batteries are engineered to meet the rigorous demands of the golf cart industry, providing exceptional performance, safety, and longevity.Our LiFePO4 batteries boast outstanding safety features, including built-in protection circuits that prevent overcharging and over-discharging. These features greatly reduce the risk of fires or explosions, making them a reliable choice for golf cart applications where safety is paramount.Our batteries are also known for their extended lifespan. With a cycle life of up to 4,000 cycles at 80% depth of discharge, they last significantly longer than traditional lead-acid batteries or other lithium-ion batteries. This longevity results in cost savings and reduced downtime for our customers.Our LiFePO4 batteries are also ideal for golf cart applications due to their higher energy density, which enables them to store more energy in a smaller space. They are also lighter than lead-acid batteries, making them easier to handle and install in golf carts where space is limited.Our batteries can also operate in a wider range of temperatures than lead-acid batteries, and they can be discharged more deeply without damage. This makes them more efficient for golf cart applications and suitable for use in different environments.Our LiFePO4 batteries also feature fast charging times and a low self-discharge rate, allowing for more frequent use and longer storage times. With our comprehensive warranty, we stand behind the quality of our batteries and are dedicated to providing the best possible products and services to our customers in the golf cart industry.



DOWNLOAD FILES


Data Sheet - 60Ah KitWiring DiagramUser Manual - updated 04/24/2023M8 Terminals - Torque Tension Recommendation is 8-12N·MPack Certifications: UL2271, UN38.3, CECell Certifications: UL1642, UL2580, UN38.3
